Interesting Stuff topics (with 115 photos) on this page include:

bullet

Flamethrowers

bullet

Vortex ring launchers

bullet

Orange vortex rings

bullet

Microwave abuse

bullet

Aerogel

bullet

The sparkling electrolytic capacitor/rectifier

bullet

Spooky Cornstarch

bullet

Zamboni battery (sort of)

bullet

Water travels uphill under its own steam

bullet

Bernoulli Balls

bullet

Bubbles

bullet

Sparkler effects

bullet

LED light patterns

bullet

Strobe Light effects

bullet

Mystery photos

horizontal rule

Flamethrowers  2005.
This is a mini version inspired by this thread on 4HV  started by Psyko.

   (click to enlarge)

The left photo shows an insulin syringe with 27 G needle spraying methylated spirit (= "metho" - ethanol/methanol) through a little propane burner flame.  The right photo shows kerosene which burns more completely but is thicker.

 (click to enlarge)

The left photo shows a 10 ml syringe with 18 G needle and shows the patch where the unburnt metho lands.  The center photo shows an insulin delivery pen with a 30 G needle which was not particularly impressive.  The second arrangement had the needle fixed in the flame and was a lot easier to control.   The right photo shows crossed beams (remember Ghost Busters - Never cross the beams).

I used a 27 G scalp vein (butterfly) needle taped onto my little butane torch.  The needle was bent into the flame.  On its own this gives too much flow with a droopy and yellow flame. I got better results with crimping the end of the needle in pliers.  When I overdid this and blocked it I bent it off to break it and this is what gave the best results. No doubt it is constricted in the end.  The beam is visibly flatter with less tendency to fall but there is still unburnt metho droplets at the end of the 'beam'.

 (click to enlarge)

The left photo shows a shot onto our garage ceiling.  The ceiling shot was interesting because the flame tries to rise but can't so it gives a strange diffuse glow rather than flames. It looks rather unnatural in the photo but was untouched (other than basic cropping/exposure/compressing).  More fun than an English essay according to my son.  The right photo shows my prowess with the flame thrower. The pressure is relatively low coming from a 20 ml syringe and long medical extension tubing and held in the other hand that you don't see.

A little more laser like quality but still rather finicky to keep alight along the whole length.  Again, these are the "best of" pictures.

 (click to enlarge)

This is the desired effect. Now, how can I solubilise some Strontium in the alcohol to get a red flame like Luke's light sabre?

horizontal rule

Vortex ring launchers 2006
First the small one made out of a large can and a rubber glove and held over a smoke generator. Gives a surprisingly strong puff of wind up to 10 feet of more away. I cut a 50% diameter hole cut in the base. Fill with smoke, pull the rubber glove membrane back and let go to fire.  A smoke ring shoots out and sails across the room.

 (click to enlarge)

The small can makes an effective and simple vortex generator.

Next the big one made from a discarded compost tumbler measuring 80 cm diameter and 90 cm deep and mounted on a sturdy frame.


 (click to enlarge)

The left photo shows me finally finding a use for those old bike tubes. The centre photo shows the elastic straps attached to the diaphragm made of a rubberized picnic blanket. The right photo shows the heater for the commercial fog fluid.


 (click to enlarge)

The left photo shows the construction team from left of me, Chris, Michael and Justin.   The centre photo shows a  flash outdoors on a still night which highlights the vortex well.  The right photo shows that there is no escape from the speeding vortex.

Above shows video 9MB of slow and fast shots. Run mouse over to play.
If that doesn't work try here.

A later version uses a commercial fog generator such as used in discos.  The fog is a proprietary mix of propylene glycol and triethylene glycol in water.

 (click to enlarge)

Above shows another slightly smaller vortex ring launcher made for the Physics Dept. Improvements include being lighter, portable and having an internal light and sights. The left photo shows the red internal light. The centre photo shows a basketball shot.  The right photo shows the rings in a lecture theatre (with smoke detectors turned off) being lit by a projector. (Perhaps a use for the Windows blue screen of death).

      (click to enlarge)

These photos show an oscillation that develops in a slow moving ring (the top one) is passed nearby by a faster ring. The slow moving ring becomes ellipsoidal in each axis alternately which lasts for several cycles.

(click to enlarge)

The photos above show some unusual vortex ring shots. The left photo shows a "UFO" shot which has bee rotated to be vertical. The centre photo shows a sunset shot of multiple rings. The right photo shows a ring passing into a tree with the physics building in the background.  The flash fired for this one giving a strange quality.

    (click to enlarge)

I am now mobile with my vortex generator. My 300W Honda generator is a bit weak for the 700W smoke generator so has to run through a variac and takes longer to heat.
Add a lick of paint, wheels and a trailer and I can take it anywhere. Had vague ideas of the kids having a small business hiring this out for kiddies birthdays and the like.  I still would like to make a huge one to fire vertically. Or a truck sized one to fire at crowds at events.

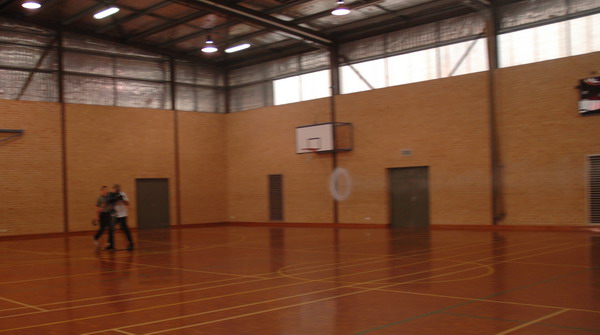

Above shows the long range shots taken in a school gym for the Discovery Channel video. They show the range of the rings and the clarity after a long run. These are going at walking pace and tend to drift up being slightly warm from the smoke generator.

(click to enlarge)

Above shows the commercial fog generator (about AUD $80 at Dick Smith's) as used in nightclubs.  The fog is a proprietary mix of propylene glycol and triethylene glycol in water and a $10 1 litre container lasts all day.

(click to enlarge)

Above, my son, Chris, blows underwater vortex rings of air in the pool.  Dolphins can do this as well.

Colored smoke rings 2008
Colored smoke has been tried before but I gather are prone to leaving a colored residue (normal smoke generators will leave a liquid residue if aimed against a surface but it will eventually evaporate).
So here's what I tried instead.

I used a standard boating flare that produces orange smoke. Under Australian maritime law it is required that you carry 2 red light flares for night and two smoke flares for day. This pack of 4 is available for AUD$70.  Each smoke flare burns for 60 seconds. If you cut each flare into 1 inch slices with a hacksaw, then the 10 smoke flare slices will cost $7 each for 12 seconds bright orange smoke.


   (click to enlarge)

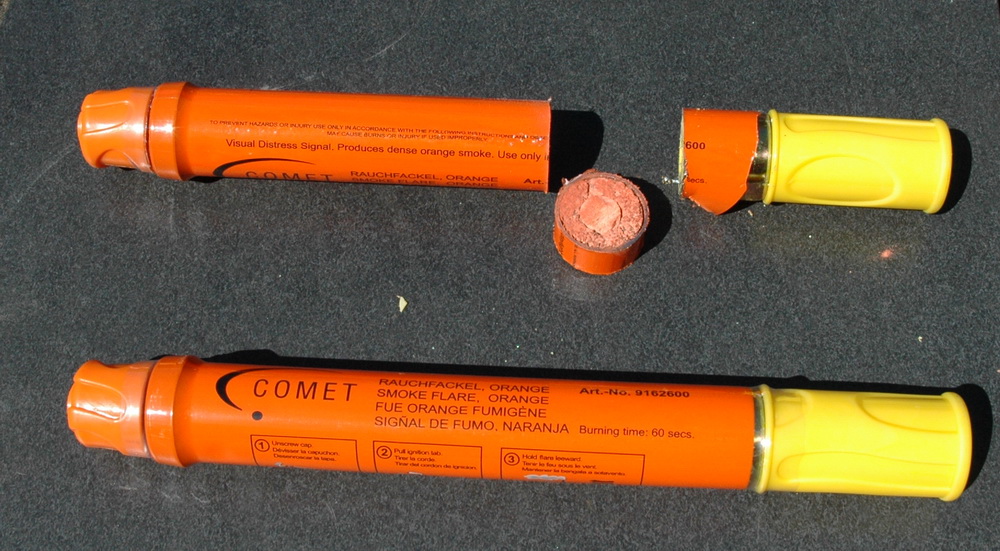

The left photo shows  the flares with a section cutout. The next photo shows that it won't work in open air as it just burns without orange smoke. Presumably oxygen must be excluded so the next photo shows a short aluminum tube as a firing chamber with ignition by my MAPP gas blowtorch.  The right photo shows the dense orange smoke resulting.


   (click to enlarge)

Above are photos of the orange rings in action.

Links:
Bill Beatty's site Some basic plans and interesting conjectures. A stick of incense is easy smoke.
Mt Etna's volcanic smoke rings
Commercial Smoke ring toys Zero Blaster and Airzooka
Bill Grundmann's 3 foot smoke rings
EastVoltResearch nice rapid fire version video
Youtube Japanese 10 m smoke rings

horizontal rule

Microwave abuse (Dec 2005)
I was given a working microwave oven (MO). I have never been game to invade the wife's kitchen to use/abuse her MO but now I have a chance to experiment.

First off, here is a CD burner (literally). Place a CD (or presumably DVD) in the MO and run it. After a second or so sparks appear and shortly after flames after which it is wise to turn off to avoid magnetron damage in view of the lack of loading.


 (click to enlarge)

Left and centre photos show the sparks then flames.   The  right photo shows "Windows 95 Starts here" and presumably ends here as well.

   (click to enlarge)

This is a 2 second exposure capturing the fine branching sparks as they spread out over the CD.

  (click to enlarge)

The fractal patterning is shown nicely if the CD backing is translucent or transparent when held up to the light.

horizontal rule

Aerogel  2006
Aerogel is an exotic solid that is ultra light weight with many remarkable properties.


   (click to enlarge)

Left  photo shows a block of aerogel (from eBay, where else?).  The  right photo shows a live 0.5 g Monarch butterfly sitting on the aerogel which weighs 0.8 g. Volume of the aerogel here is just on 10 cc hence it is 80 mg/cc. At about AU$ 80 for 0.8 g, this makes it about 4 times as expensive as gold per unit weight.

Aerogel is typically 99.8% air and is is made by high temperature and pressure-critical-point drying of a gel composed of colloidal silica structural units filled with solvents. The resulting silica dioxide structure is sponge like with microporosity on a nanometer scale. It has many unusual properties including extreme lightness (as low as 3 mg/cc), excellent insulating properties (39 times better than fibreglass) and high electrical insulation (1018 ohm cm compared with glass 1015).  It was discovered in the 1930's but came into the public eye with aerospace uses including Mars Rover insulation and as a comet dust collector with Stardust 2.

It can support 4000 times its own weight.

   (click to enlarge)

It shows laser beams clearly just like thick smoke.  This photo does not really show how clear it actually is.

horizontal rule

The sparkling electrolytic capacitor/rectifier 2006
This is an unusual experiment which is very simple and is detailed here. Basically two aluminium electrodes in a sodium bicarbonate solution will glow and sparkle with sufficient applied voltage. One electrode is aluminium foil and the other is an aluminium bar.

   (click to enlarge)

Left  photo shows a sparkling of both electrodes with 150 VAC applied.  The  right photo shows a diffuse glow seen with dark adapted eyes, which starts at about 60 VAC associated with a little sparkling of the solid electrode.

Here's my take on what is happening. If you insert an aluminium electrode in a solution then it will form an oxide layer and when the metal is positive will block current flow. This, as I understand, is the basis for electrolytic capacitors and the reason they are polarized. Here we have two aluminium electrodes which is the equivalent of back to back electrolytics which are then non-polarized.
Initially there is a lot of current flow e.g. 10V 1A but this rapidly drops as the oxide layer builds up. After a few minutes there is little flow even at 100 VAC. Exceed this however and things start to happen fast.  At 150 VAC the current rises to 5 A (750 W) and  widespread sparking is seen particularly at the electrolyte/air/electrode junction.  I interpret this as breakdown of the oxide layer with voltage. There is a diffuse glow starting at about 60 VAC but the sparkling becomes more prominent with increasing voltage.
Note that the alkali solution boils rapidly with the heat.  Eye protection is very important here.

horizontal rule

Spooky Cornstarch 2006
Inspired by a recent video I decided to do make my own cornstarch fun. (Corn flour in Australia).
Essentially cornstarch liquid is a fluid whose viscosity is rate dependent. You can hit it hard with a spoon and it will strike it and bounce off, but can be spooned slowly and drip from a spoon. A real anti splash fluid.
On a flat plate under vibration the vibration is probably more marked at discontinuities and edges (like a wave breaks at the seashore). This leads to bizarre effects with cornstarch which gets forced up into stalagmites, loops and bizarre writhing spooky shapes like pools of writhing undead...

Anyway it is very easy to do. Get the wife/girlfriend/significant other to make a reasonably thick cornflour/cornstarch mixture. (This is a common cooking ingredient). Get a small loudspeaker (I used 4 inch, 4 ohm, 3.5 W) and feed it with 50 Hz / 60 Hz. I guess the speaker can still be in its enclosure.  Don't get cornstarch over your home theatre speakers though as this will upset the wife/girlfriend/significant other.

Use a 6 VAC transformer or winding with a dropping resistor of 8 - 10 ohm 5 watt, or use a variac.  Even use the other speaker of a stereo pair as a dropping resistor.   I needed about 2.0 VAC i.e. 0.5 W.
Place some plastic cling film (Gladwrap in Australia) loosely over the speaker so that a spoonful or two of the cornstarch mix will sit closely applied to the speaker cone.

I did try a frequency generator and different frequencies but 50 Hz seems fine, particularly as it dries a little and the viscosity rises.


 (click to enlarge)

Photos above show varying effects as the power is increased.

I tried this with a subwoofer and the results were a bit disappointing initially.

  (click to enlarge)

The left photo shows the 12 inch subwoofer driven with 40 W at 50 Hz (12 VAC).   The right photo shows only limited extension of the corn flour. Removing the plastic had little effect until I got out the frequency generator and a 100 W audio amp and picked out the resonant frequency of about 22 Hz where cone excursion was greatest and up to one inch.


(click to enlarge)

The left photo shows the 12 inch subwoofer driven with 40 W at 50 Hz (12 VAC).   The center photo shows a shot at 25Hz where the corn flour lumps get thrown around.   The right photo shows a close-up of one of the airborne lumps.

(click to enlarge)

You can get some unusual shots with the funny properties of corn flour. Here I was pouring it out with a spoon.  The pour is falling but nowhere near as fast as it should.

horizontal rule

Zamboni battery (sort of) 2006
I have been keeping an eye out for suitable materials to make a Zamboni battery for some time now.
A Zamboni battery or Duluc dry pile is a battery made of thin discs of metal (often copper-zinc) separated by paper which is kept slightly conductive by the humidity.  By stacking up thousands of these a battery of thousands of volts at an extremely low current can be made. This is enough to drive devices that run on charge such as Franklin bells. The Oxford Electric bell has been running since 1840.
I have used electrodes that are used for taking ECG's (electrocardiograms) of which 10 are used for each recording and are single use then discarded. The electrodes are silver coated plastic coated with a silver chloride impregnated gel which is sticky. The silver is exposed on one corner to allow the electrical connection to a crocodile clip.
So could these be used to make multiple cells?

 (click to enlarge)

The left photo shows the electrode on my hand and the underside of another one. I have also connected it to a meter to show that 0.6 V is generated across this cell to my hand.  The center photo shows 0.7 V when connected to some aluminum. Current at short circuit is 1mA.  The right photo shows the result with thin strips in series generating 2.9 V.  Contact between the aluminum foil and the silvered electrode is tenuous without pressure though.
So small batteries are possible with cheap materials.  I am exploring other configurations in an effort to keep things simple and reliable.  I need to think about the oxide layer forming on the aluminum as in the electrolytic capacitor above.

   (click to enlarge)


Above shows one of my batteries a year later.  The aluminum foil has almost disappeared. There was little residual voltage but I could charge it up sufficiently to dimly light a LED.

  (click to enlarge)

Here is another battery made from small squares of zinc plate each of which is tack soldered to copper foil squares each touching the electrolyte gel of a pad.  Initial short circuit current is about 20 mA but this falls rapidly and this LED is being driven at 1.5 mA.  Open circuit voltage is 4.8V so about 0.84V per cell.

horizontal rule

Water travels uphill under its own steam 2006
This idea comes from a New Scientist article earlier this year. Essentially a water drop will travel uphill on a very hot ratcheted surface on its blanket of steam.


(click to enlarge)

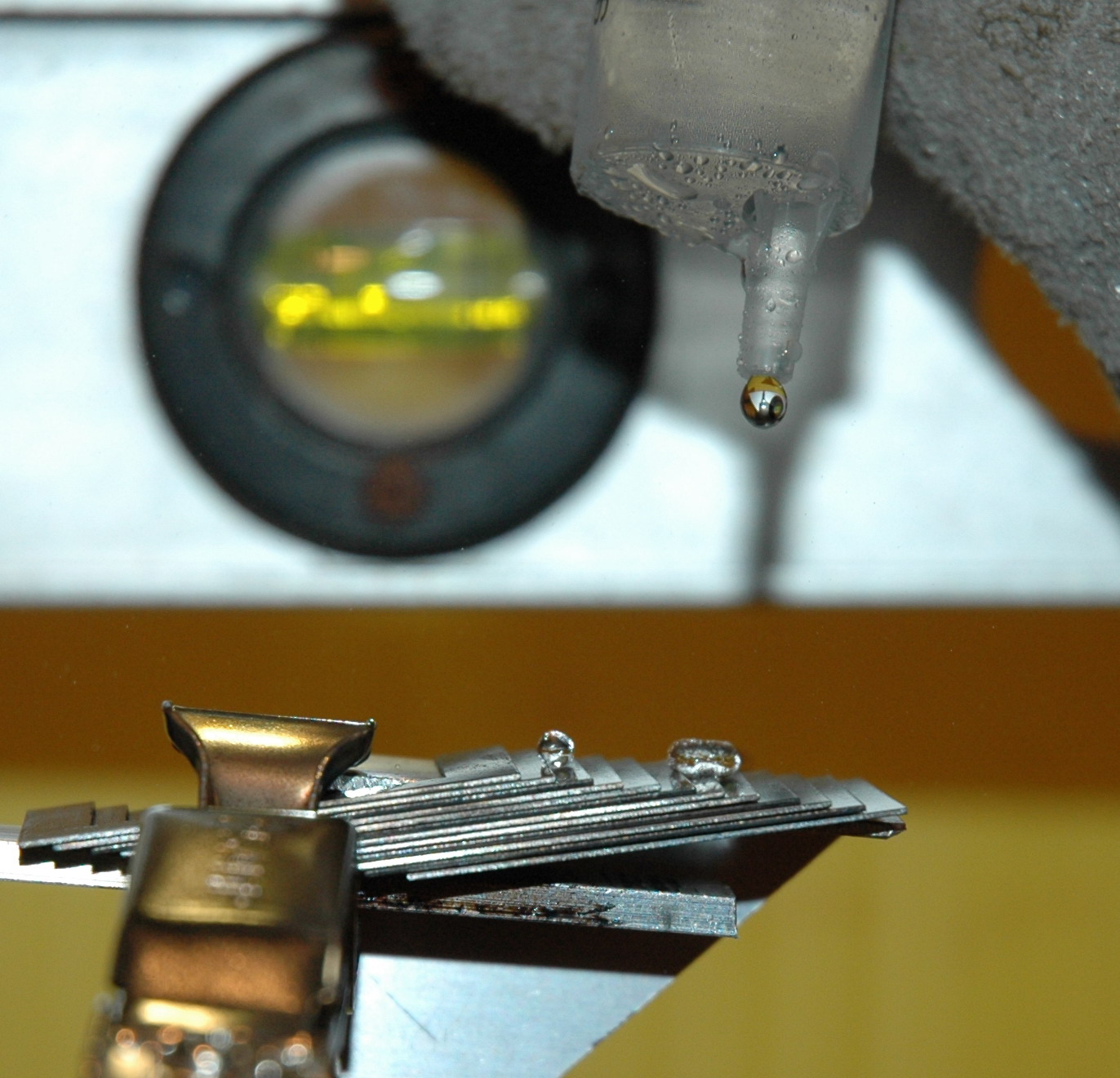

The left photo shows a close up of a large drop of water dropped onto a hot ratcheted surface.  It is traveling uphill from left to right.  The surface was made from the iron laminations from a very small transformer.  They are held in place with a crocodile clip onto an aluminium bar and are tilted downward from left to right. The spirit level in the background is dead level as is the camera.  The centre photo shows two drops travelling uphill. The right photo shows a drop that has gone up the hill and down the other side.


(click to enlarge)

The left photo shows the MAPP gas blowtorch heating the laminations to 287 degrees C. The centre photo shows the infrared thermometer.  Temperatures have an optimal range  of perhaps 200 - 300 degrees C The right photo shows that the temperature has dropped to around 140 degrees and a water drop will wet the iron and boil with splashing and disintegration of the drop.  Apparently the same happens with many liquids including alcohol and liquid nitrogen.

horizontal rule

Bernoulli Ball 2008
Here are two Bernoulli balls stabilized by three peacock feathers.
Leaf blower power. Very much more stable even in a significant cross wind which a normal Bernoulli ball will not tolerate.

   (click to enlarge)

The story behind the peacock feathers: There is a dedicated Bernoulli setup at the Gravity Discovery Centre in Western Australia where I have 4 displays. It will blow up two 6-8 inch plastic or polystyrene balls.
Peacock feathers are also sold there and one visiting child stuck several into the polystyrene ball. While his father was berating him the Centre attendant noted that it was really stable so they got left stuck in.
I picked up a few feathers to experiment myself.

   (click to enlarge)

The addition of a smoke generator helps to show the airflow.

   (click to enlarge)

The pic shows one of my new purchases - one of three stainless steel gazing balls which had been floating in an ornamental pool for 3 years unsold in a garden place.
It is being levitated only a few millimeters due to the weight but will still rotate quite freely.
I didn't realize the appropriateness of my t-shirt slogan until I had already set things up.

horizontal rule

Bubbles 2008
Got a bubblemaker for my birthday (I'm just a big kid really).

   (click to enlarge)

Diorama in a bubble above. Note the thinning film on the top of the bubble which has stopped reflecting light.  Reflection shows my son and I plus some trees.

   (click to enlarge)

Above shows a smoke generator driving the bubble generator giving smoke filled bubbles.

   (click to enlarge)

They otherwise behave just like ordinary bubbles - except they vanish in a "puff of smoke".  How cool is that.


(click to enlarge)

You can even make orange smoke filled bubbles using a segment of a marine flare. Except it caught fire and sent flames through my smoke generator like the afterburner in a jet engine.

horizontal rule

Sparkler effects 2008
Long exposures of moving light sources give dramatic effects.


   (click to enlarge)

Photos above show a sparkler attached to an electric drill and a 5 second exposure.


  (click to enlarge)

Above left photo - Jaimie are you ready? Centre photo: Jaimie unwittingly pushes the RED BUTTON and explodes.   The right photo shows how it was meant to be done. Same sparklers in a cordless drill but using a rotating color filter.

horizontal rule

LED light patterns 2008
A selection of photos of moving LED light sources shows them in a new light.

   (click to enlarge)

Above left photo This is a small commercial battery powered LED array that my wife wanted suspended above the BBQ.  I have covered one of the LED's with blue cellophane.  The right photo shows it suspended above the camera. Now just give the lights a push and take a time exposure.


(click to enlarge)

Above left photo Pushing the array in a simple circular motion with some spin gives intricate geometric patterns. Center photo It's like you could almost grab it.  This looks very much like a toroid used on top of my Tesla coils.  The right photo shows the path followed by the one blue colored LED.

This next one below is a little fan with programmed LED's in one of the soft plastic blades and was bought in Hong Kong (thanks Gail).  The flash rate and sequence of each LED varies.

  (click to enlarge)

Above left photo The fans with its 5 LED's is stationary.   The right photo shows it running and you can see the pattern which constantly changes.


(click to enlarge)

Left and centre photos show the fan rotating spiral giving a lot of detailed patterns. Pushing the array in a simple circular motion with some spin gives intricate geometric patterns.  It's like you could almost grab it.  This looks very much like a toroid used on top of my Tesla coils.  The right photo? Hmm.. only a mother could love a nerd like this.

  (click to enlarge)

Left and centre photos show drawing with light  using a handheld LED torch and a fiber optic spray. The right photo shows me drawing what looks a bit like a lightning bolt next to me.

Iron Man 2 style plasma whip Light drawing with red and blue neons   (click to enlarge)

Above left photo shows my version of "plasma whip" modelled on the IronMan 2 version.   The right photo shows the effect from two small decorative neon tubes spun in a circle.

horizontal rule

Strobe Light effects 2009

  (click to enlarge)

You see some strange creatures attracted to the shed lights at night.

horizontal rule

Mystery Photos 2006
A selection of photos that are not instantly recognizable for what they are.  The explanation and supporting photo follows down the page:

Photo 1  below

 (click to enlarge)

Photo 2 below

 (click to enlarge)

A typical Australian road about 5 minutes from home. Something is not right but you have to enlarge the photo and look carefully for the key. It changes the whole interpretation.
.
.
.
.
.
.
.

Answers below:



Photo 1  An angle grinder cutting through a pipe with the view down the pipe.

Photo 2  The shot is a 5 minute exposure on a cloudy and very dark night.  The key is the streaks of stars in some areas.  This is what it really looks like with car headlights on.
