This is a flame diode.  A hot filament is used to rectify a high voltage in a similar manner to a vacuum tube. Except it didn’t work for me.
“Continue reading” for further details on this interesting setup.

It was based on this excellent video and article where two triodes are made and form a nice oscillator.

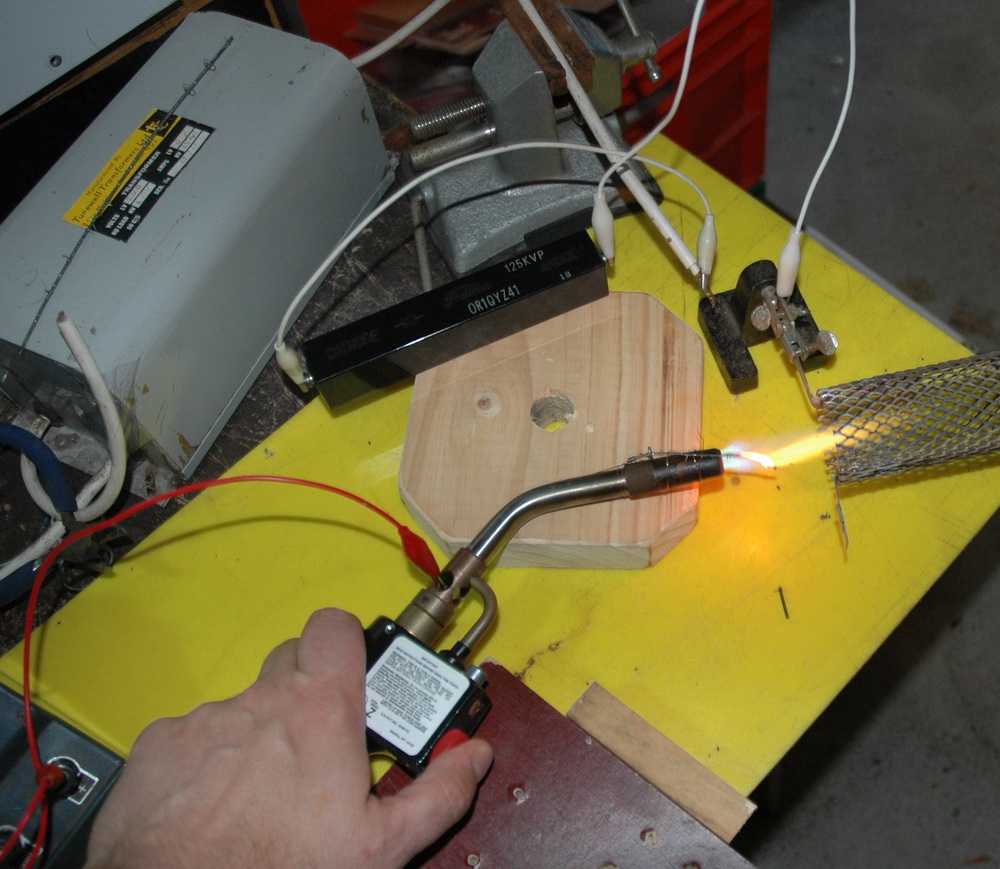

The photos above show the setup with a 6 kV 30 mA neon sign transformer (NST). I am using a MAPP gas burner with a tungsten filament attached to it. The anode is a titanium mesh cylinder from a pool chlorinator. The only time I seemed to get proper rectification was when sparks formed, rather than as a diffuse process as I had hoped. The DC meter shows 7 mA of rectification but it was rather hit and miss and most of the time there was no useful rectification. I am sure the flame position is critical and that the cathode should be fairly cold. It is glowing red hot here.

The tungsten filament oxidises after a while too. I had hopes of making a big propane powered triode to run a VTTC. That would have been impressive.

Probably worth revisiting sometime though, to make a triode with proper grid control. However, I have only ever made only standard valve circuit before so lots of variables even with the flame diode working OK.
