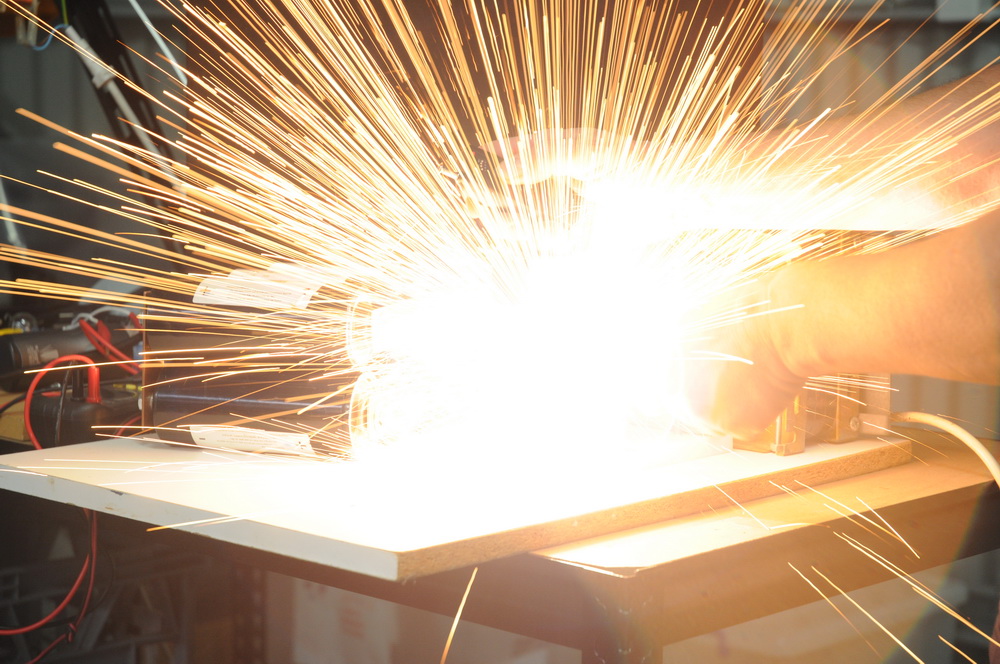

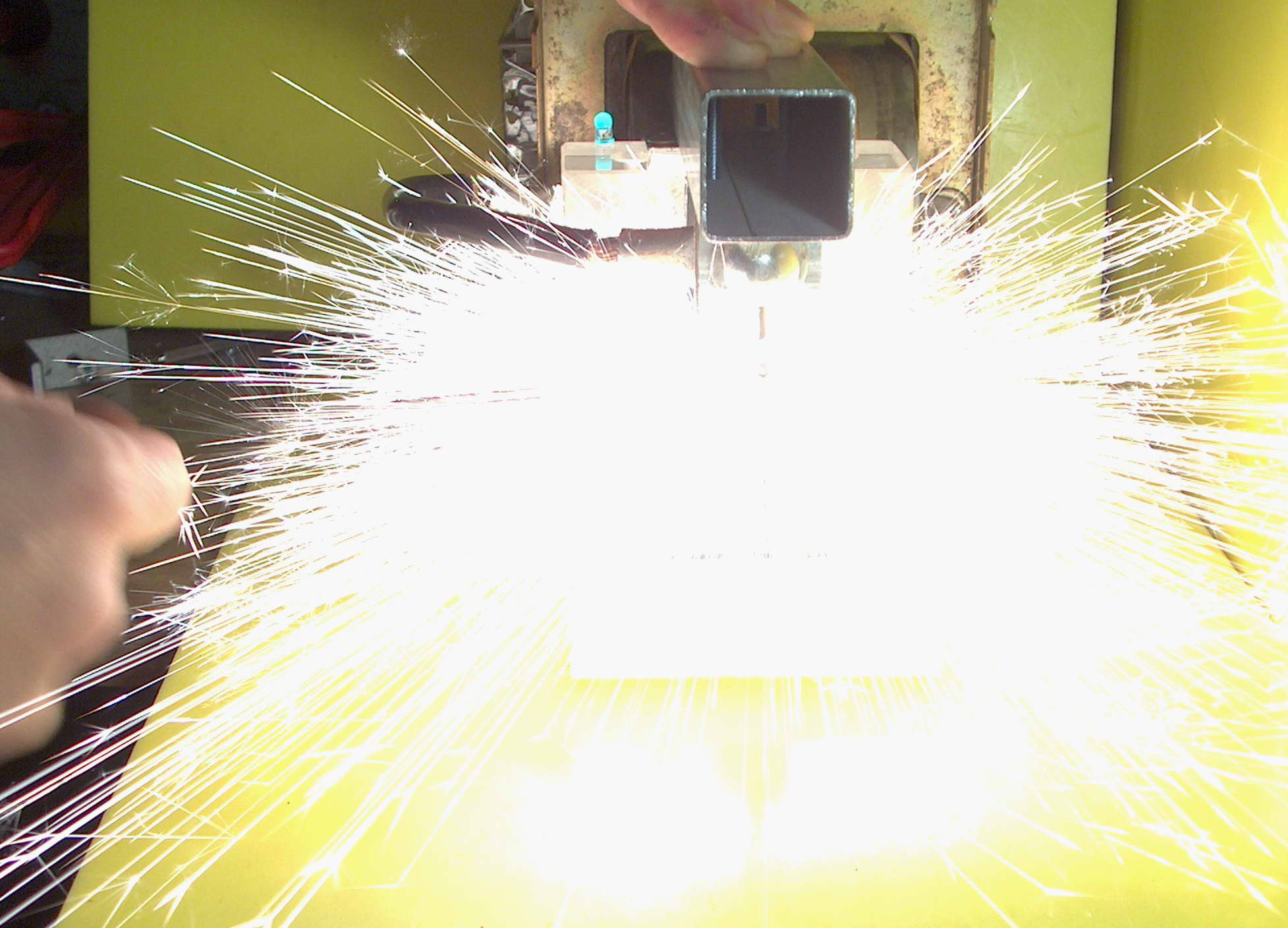

My spot welder with tungsten electrodes is driven with DC from a bank of ultracapacitors.
“Continue reading” for animations and photos of the spot welder in action.
Continue reading
Spot Welder DC
Leave a reply
Category Archives: Low Voltage
Ultracapacitors

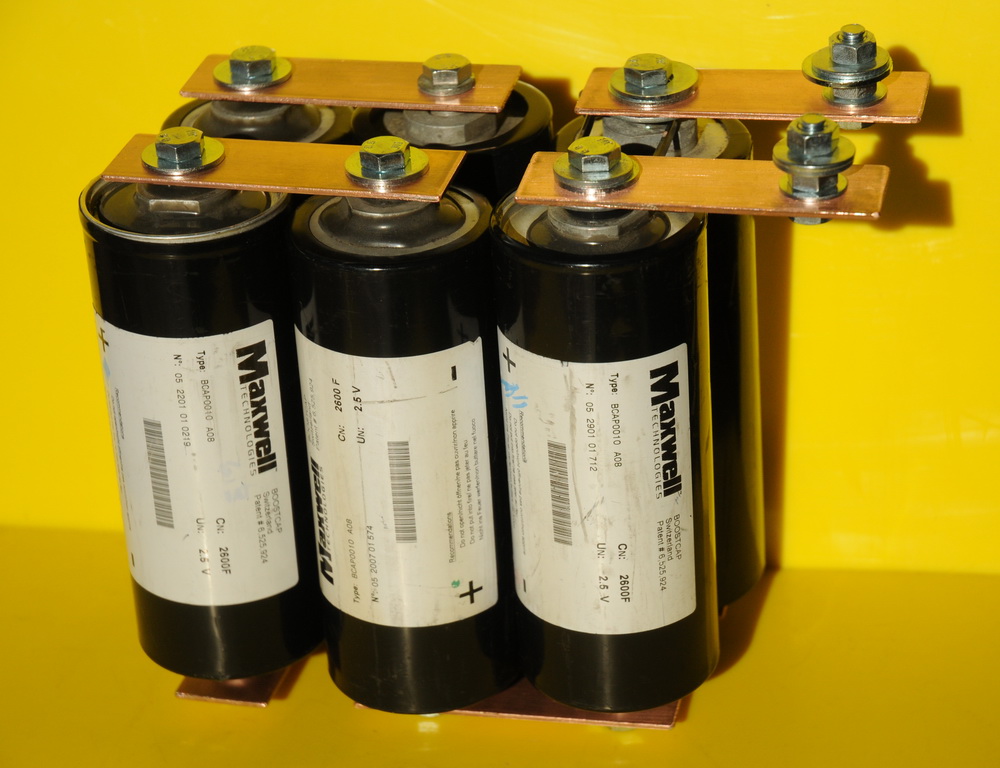

These ultracapacitors have a massively increased power density compared with conventional capacitors and this bank stores 50 kJ.
“Continue reading” for more photos and details on these capacitors on steroids.
Continue reading
Spot Welder AC
I made this as I thought I may need something to make joins for use in a vacuum that may get red hot. Epoxy and plain or silver soldering would not do. It uses a 6 V 90 A transformer and is able to spot weld a variety of mostly thin metal sheets.
“Continue reading” for more spot welder photos.
Continue reading
Homopolar Motor

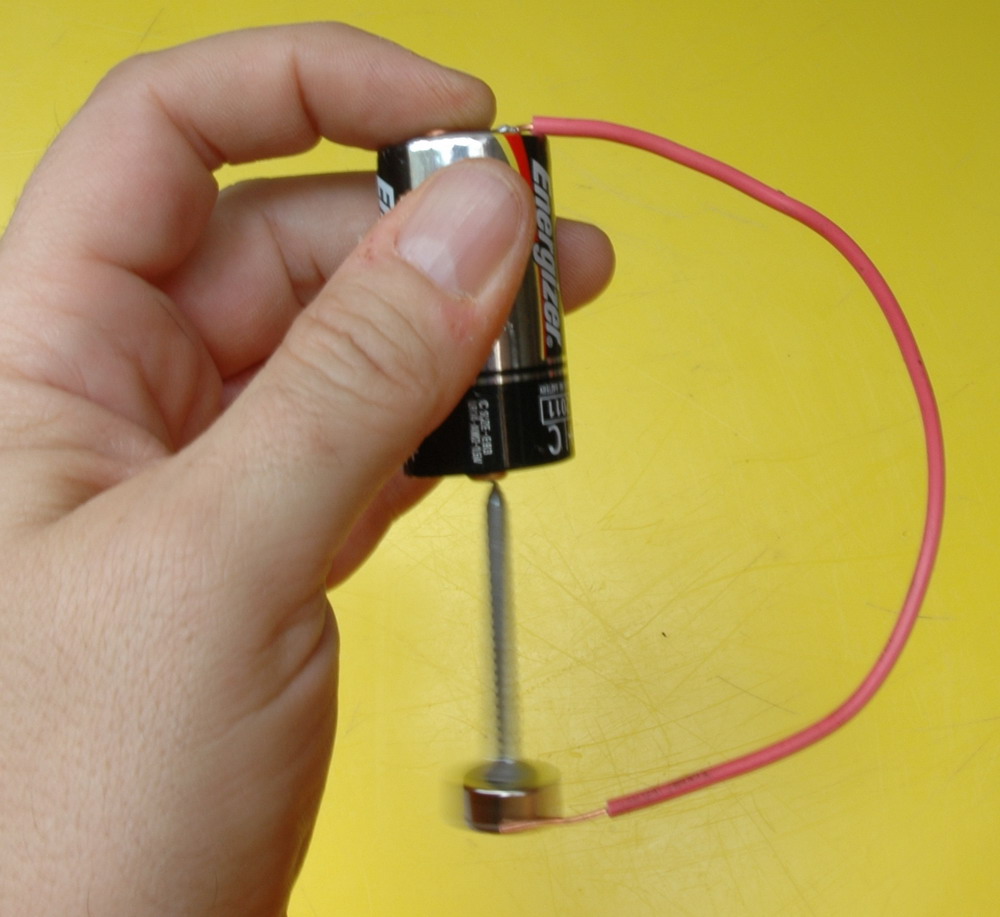

Homopolar motor made with 4 common household parts.
This homopolar motor has 4 components and takes seconds to make. Running here at 5800 RPM. It ran for 2:35 minutes once the power is off because the bearing is only a point with much of the weight taken off by gravity.
“Continue Reading” for further explanation. 2 Photos and links….
Continue reading
Power Supplies

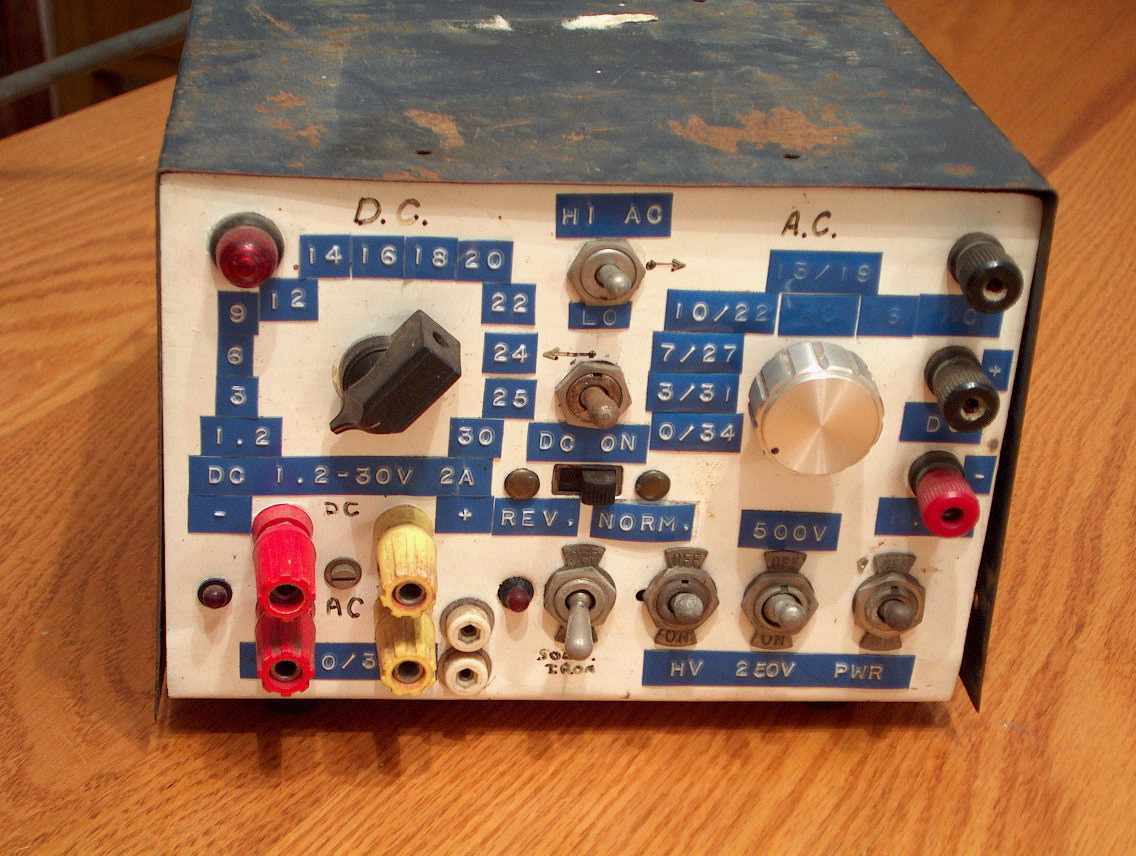

My sentimental favourite power supply was made in 1971 and was developed over the years. It appeared in the local newspapers 8 times as a backdrop to photos about two of four state wide talent quest prizes I won between 1970 and 1973.
“Continue reading” for supply details and some media shots.
Continue reading
MOT low voltage rewind

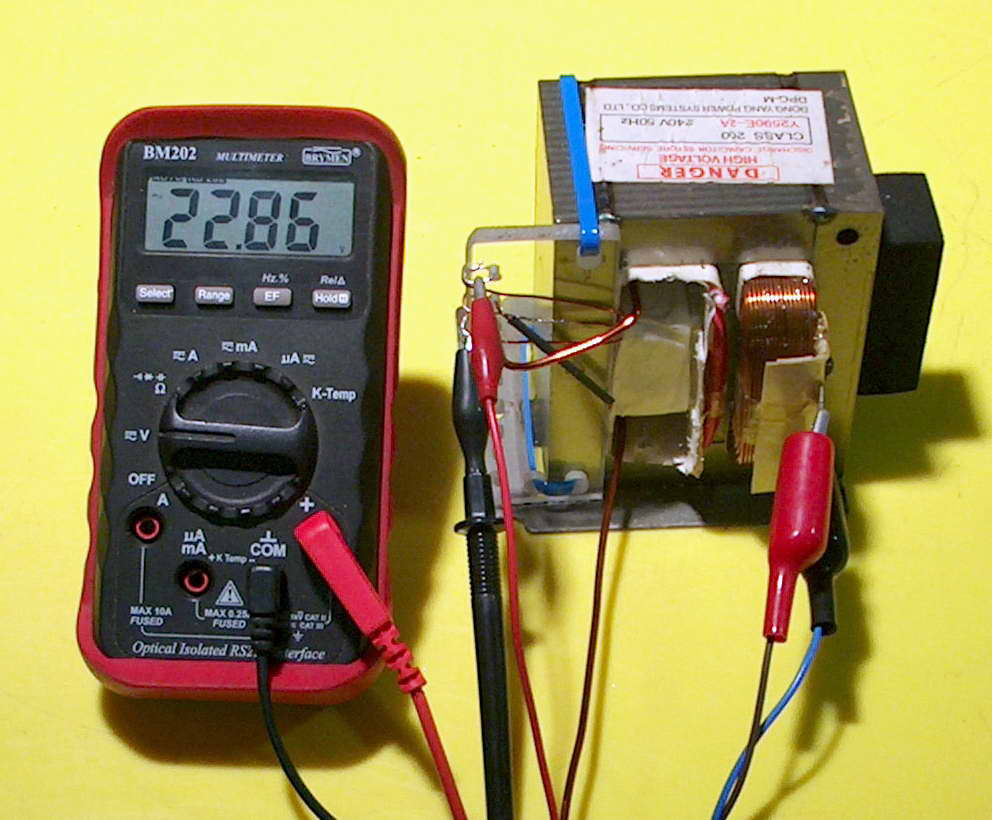

A microwave oven transformer can be used for a powerful low voltage supply.
“Continue reading” for construction details of this modified low voltage transformer.
Continue reading
Marinov Motor

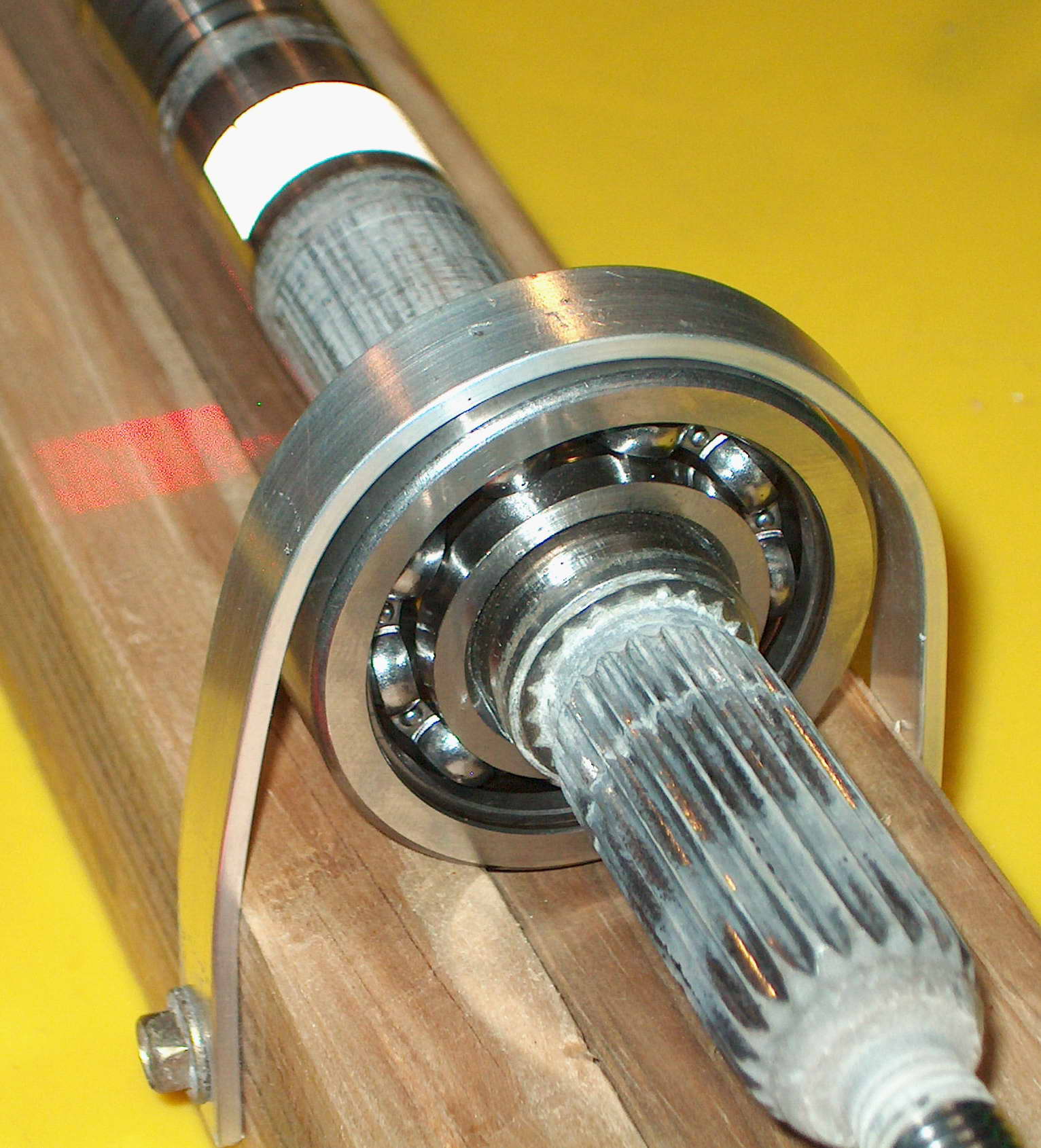

For a morning diversion from my other projects, I made a Marinov motor. This is a motor that is simply two ball races and an axle.
“Continue reading” for details and photos. Continue reading
Low Voltage (But High Current)
Low Voltage

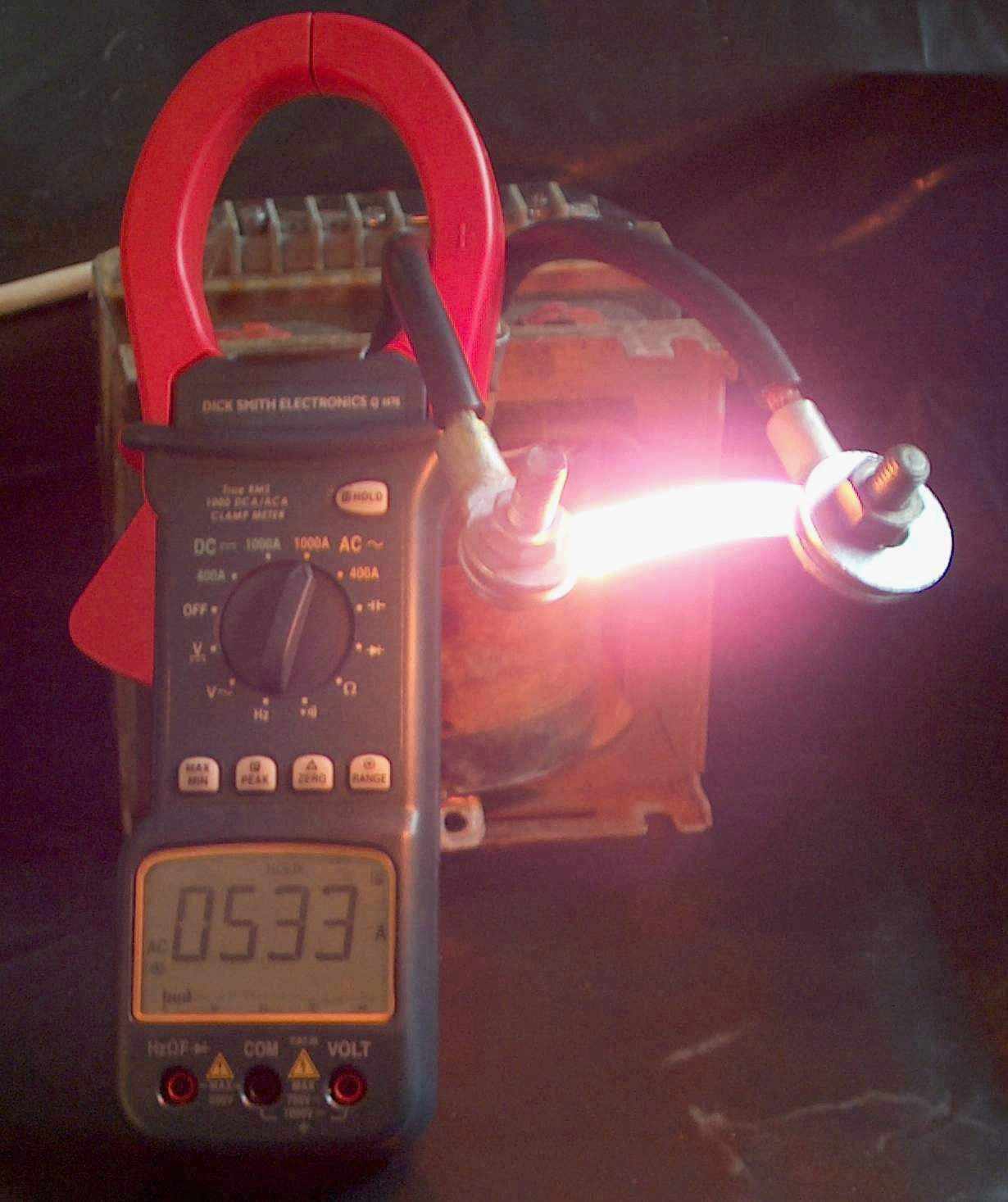

One volt can be impressive too. Check out the 533 A current on the clamp meter from this transformer (above). It is a show of power when melting iron strips with low voltage.
“Continue reading” for more details of this interesting transformer.
Continue reading
Big Silicon Controlled Rectifiers

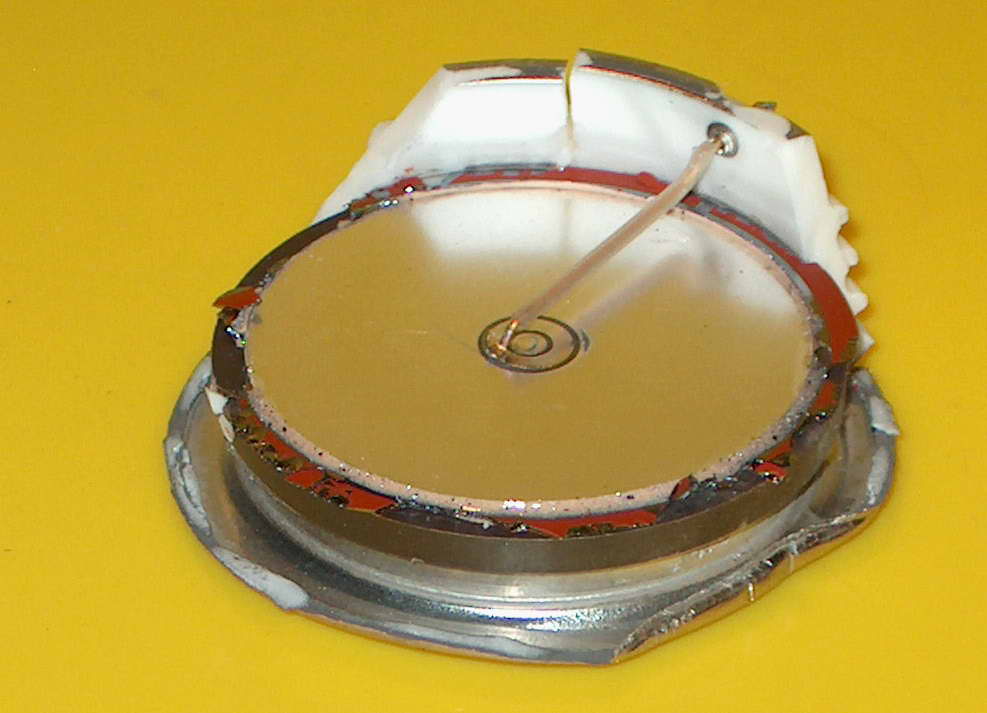

I have a number of big silicon controlled rectifiers (SCR’s) of the “hockey puck” type.
“Continue reading” for more details and photos. Continue reading
Zamboni Battery

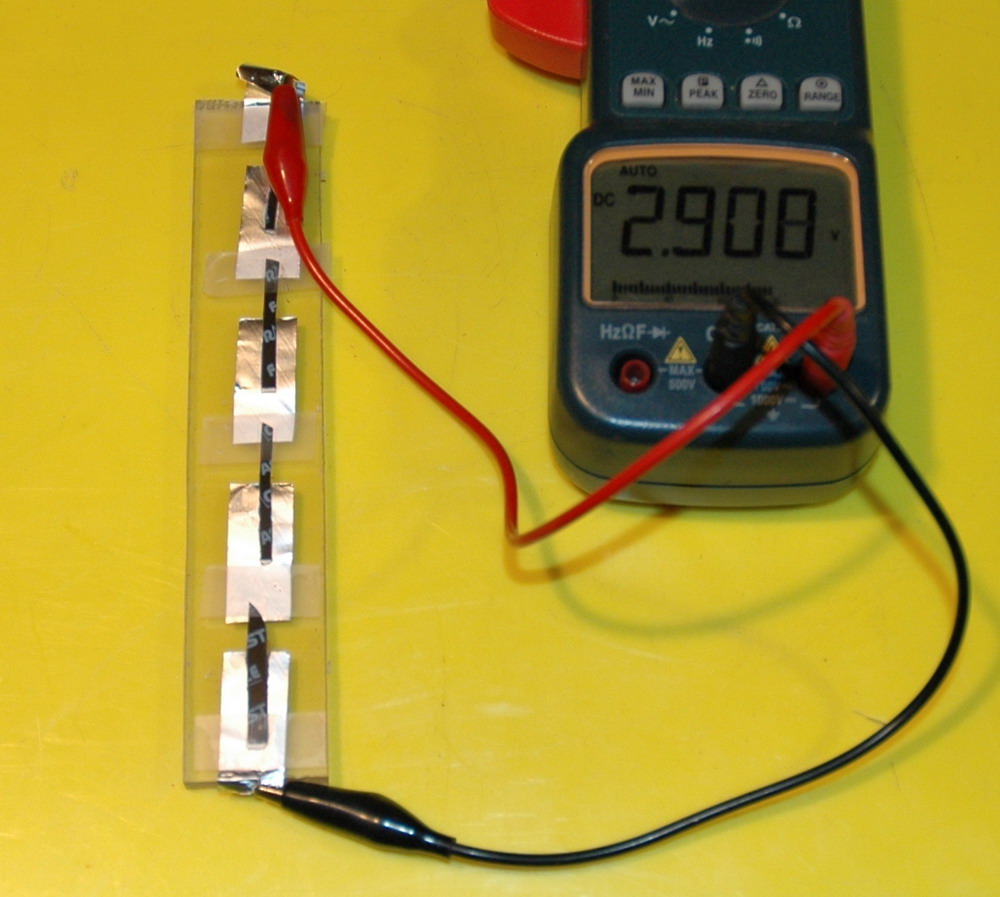

I have been keeping an eye out for suitable materials to make a Zamboni battery. The battery above uses small strips from discarded medical ECG electrodes to generate 2.9V.
“Continue reading” for more details and photos. Continue reading
